Enhance Your Air Quality

Aventine's filtration systems are designed to ensure clean environments. From hospitals to industrial spaces, we offer systems that fit all needs.

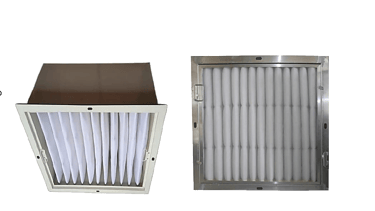

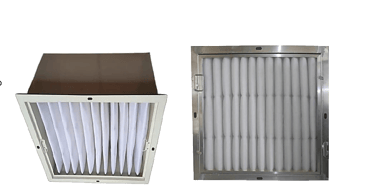

Pre-filters

Fine Filters

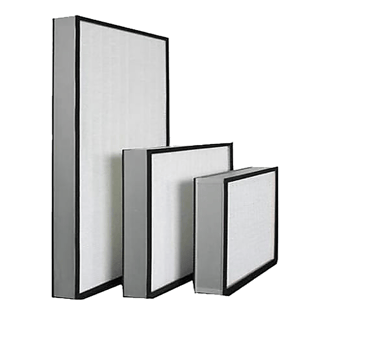

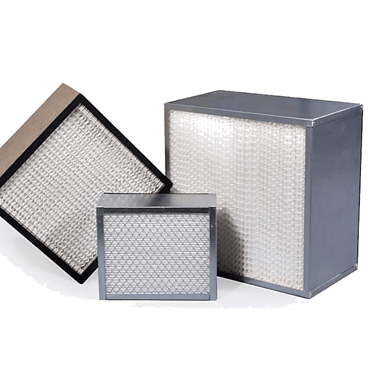

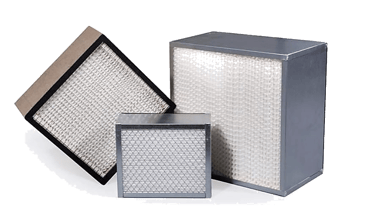

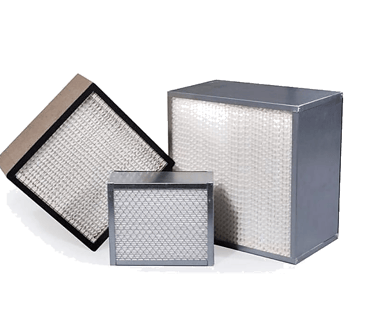

HEPA Filters

Efficiency: 80–90% (G3/G4 grade) Media: Synthetic non-woven / washable type Frame: GI / Aluminium / MS powder coated Application: First-stage filtration in AHUs and FCUs Purpose: Captures large dust particles, hair, debris

Efficiency: 90–95% (F5–F9 grade) Media: Microfine glass fibre Frame: GI / Aluminium / Extruded Aluminium Purpose: Removes medium-sized particles before the HEPA stage

Efficiency: 99.97% to 99.995% (≥ 0.3 micron) Media: Micro glass fibre paper (mini-pleated) Frame: Aluminium / SS 304 Recommended For: OTs, ICUs, clean rooms Options: Terminal HEPA boxes, gel-seal type

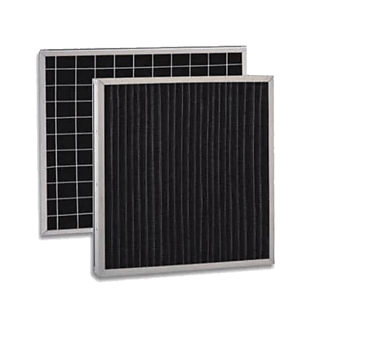

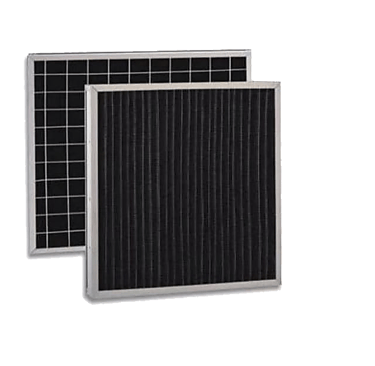

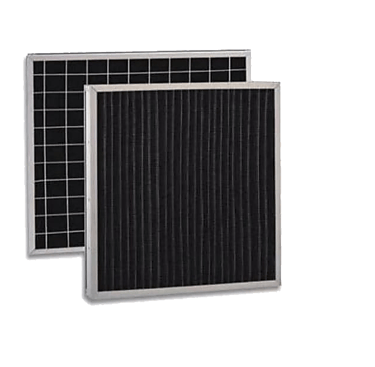

Carbon filters

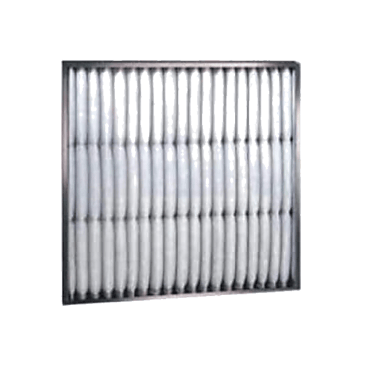

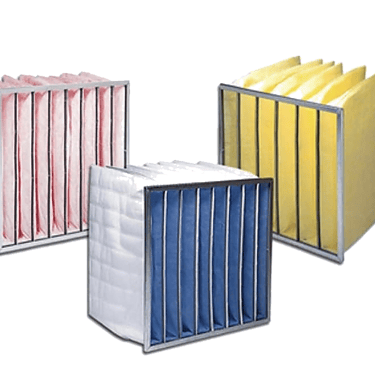

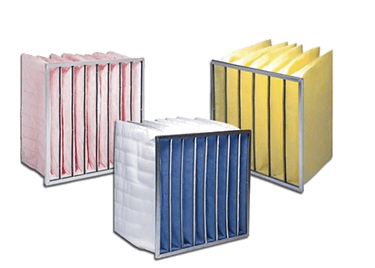

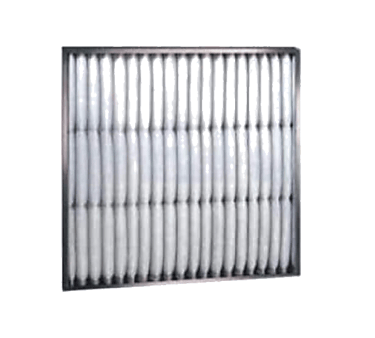

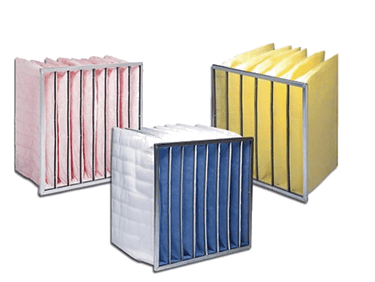

Pocket filters

Mini-Pleat Filters

Type: Activated carbon pellets or impregnated media Odour, VOC, and gas removal

Multi-pocket configuration Efficiency: F5–F9 High dust holding capacity for AHUs

High surface area Low pressure drop Used in modular OTs and labs

HVAC SYSTEMS (Supply &Installation)

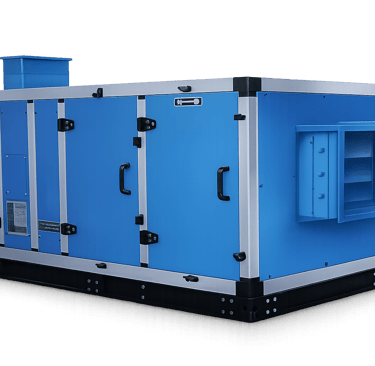

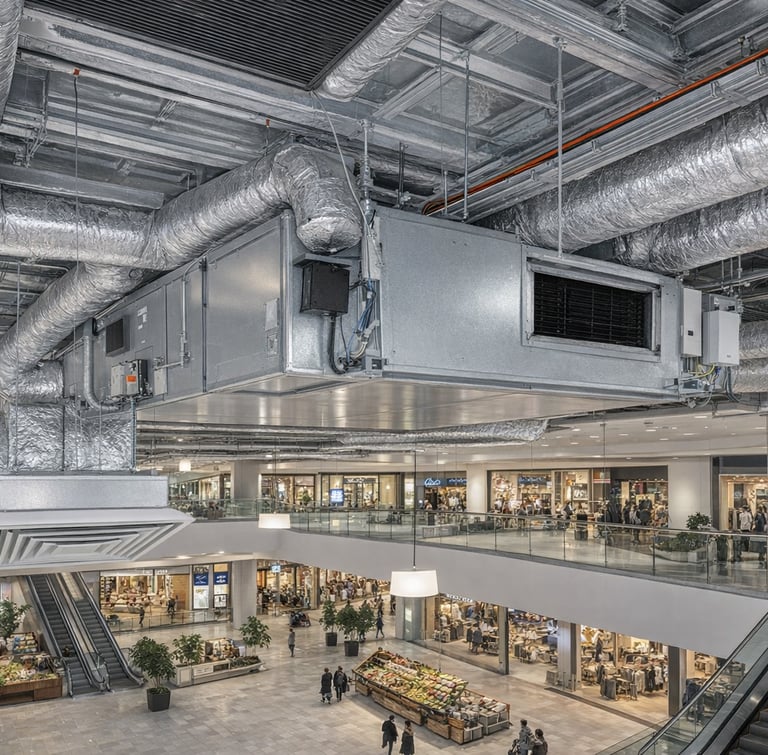

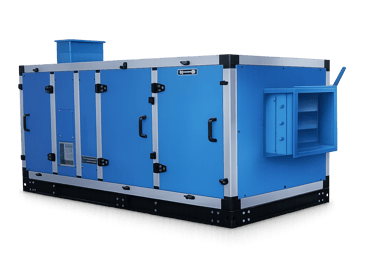

Air Handling Units (AHU)

Type: Single/Double Skin Thickness: 25mm / 43mm PUF or Rockwool insulation Fan: DIDW Forward/Backward curved Filter Section: Pre + Fine + HEPA options Cooling Coil: Chilled water / DX type CFM Range: 500 – 50,000 CFM Application: Hospitals, malls, industries

Type: Air-cooled / Water-cooled Capacity: 1TR – 40TR Refrigerant: R410A / R32 / R407C Scroll / Rotary compressor options

Capacity: 1.5TR – 4TR 360° airflow Stylish panel designs Ideal for offices, labs, and commercial areas

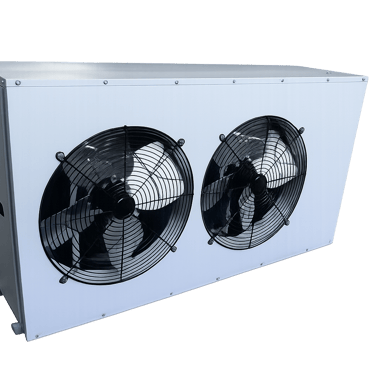

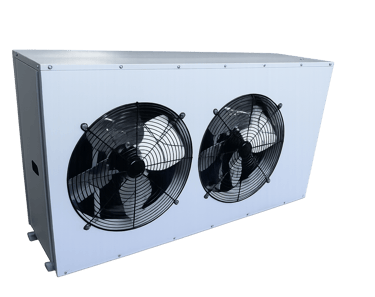

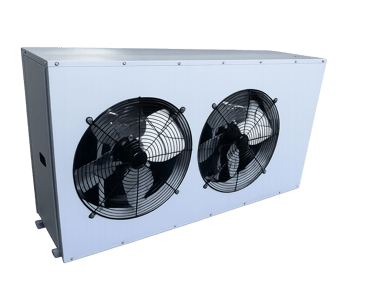

Condensing Units

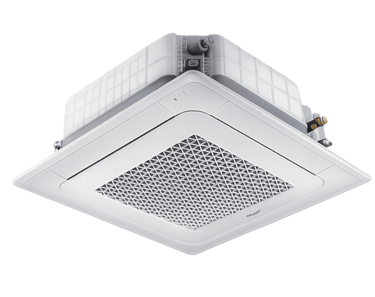

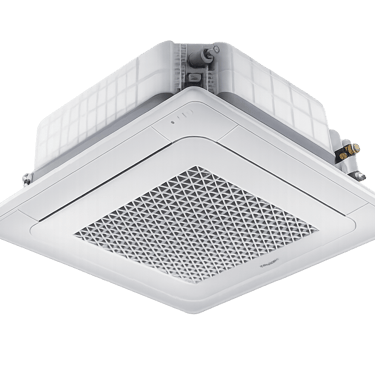

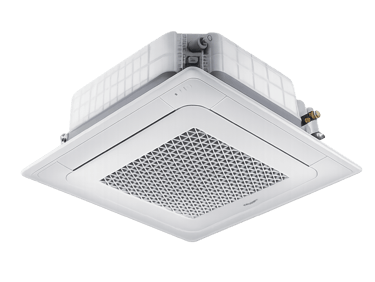

Cassette AC Units

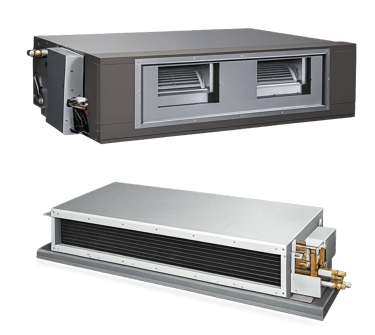

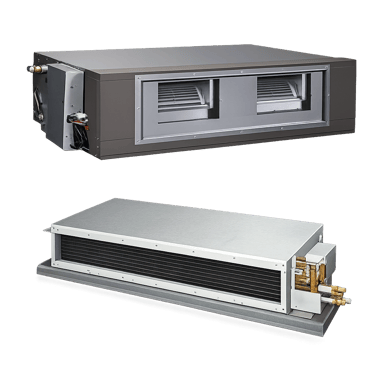

Ductable AC Units

Capacity: 3TR – 22.5TR Features: High static pressure models, compact design Compatible with GI, PI, and insulated ducts

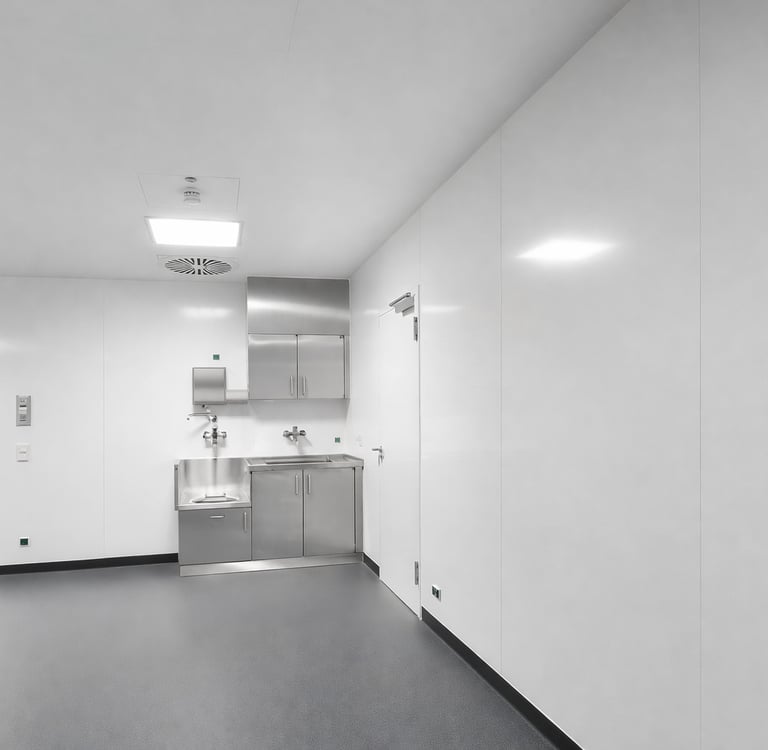

Cleanroom & Hospital Solutions

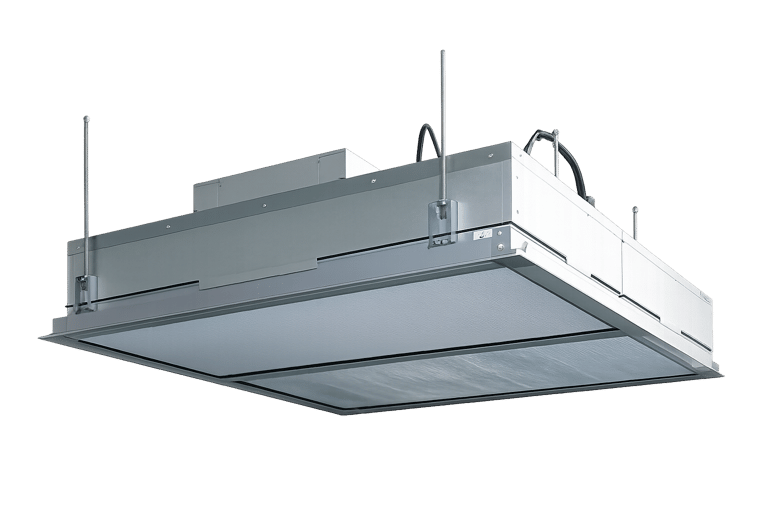

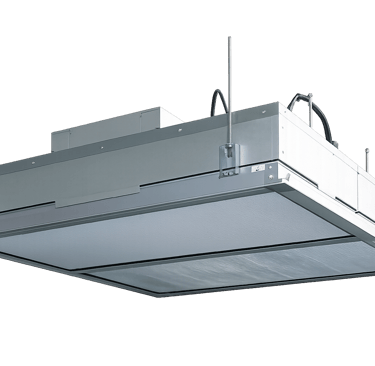

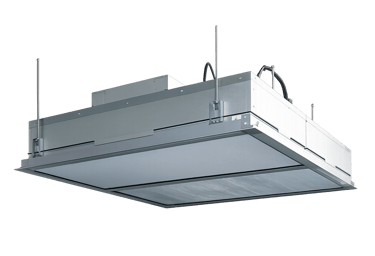

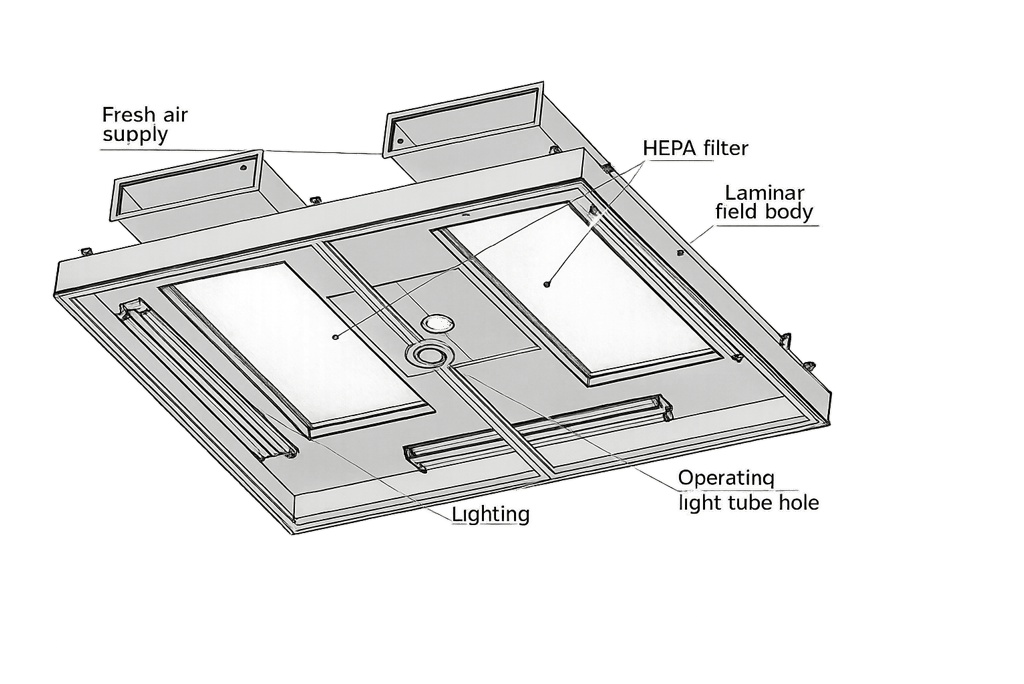

Laminar Airflow Systems

Types: Vertical / Horizontal LAF Filter Grade: HEPA H13/H14 Velocity: 0.45 ± 20% m/s Application: OTs, labs, sterile rooms

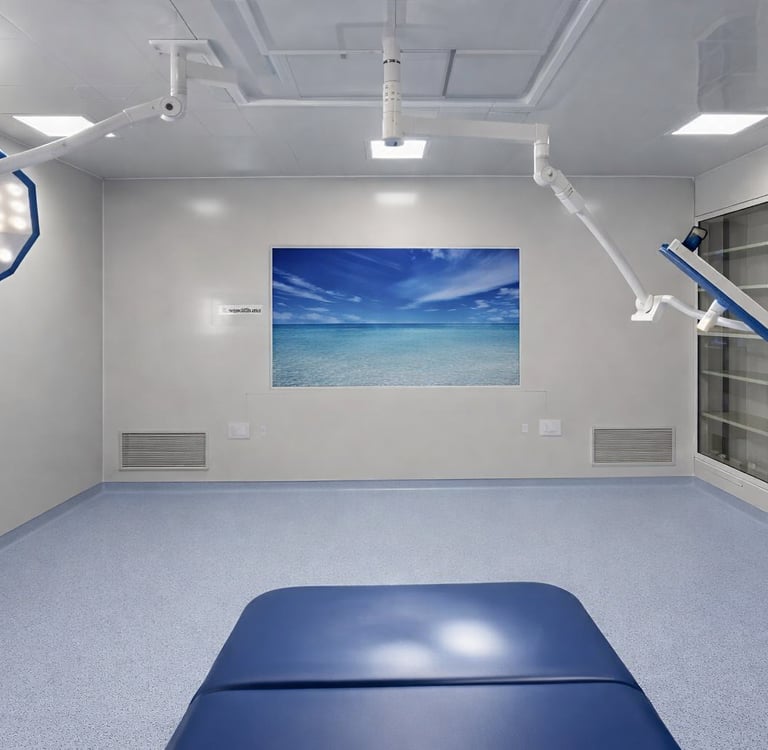

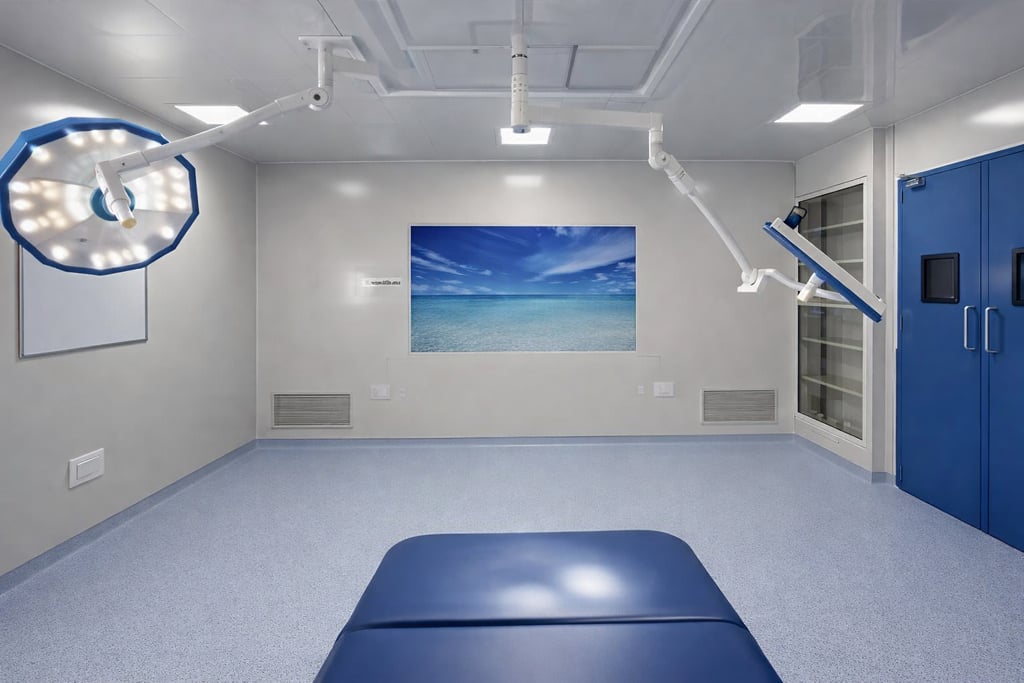

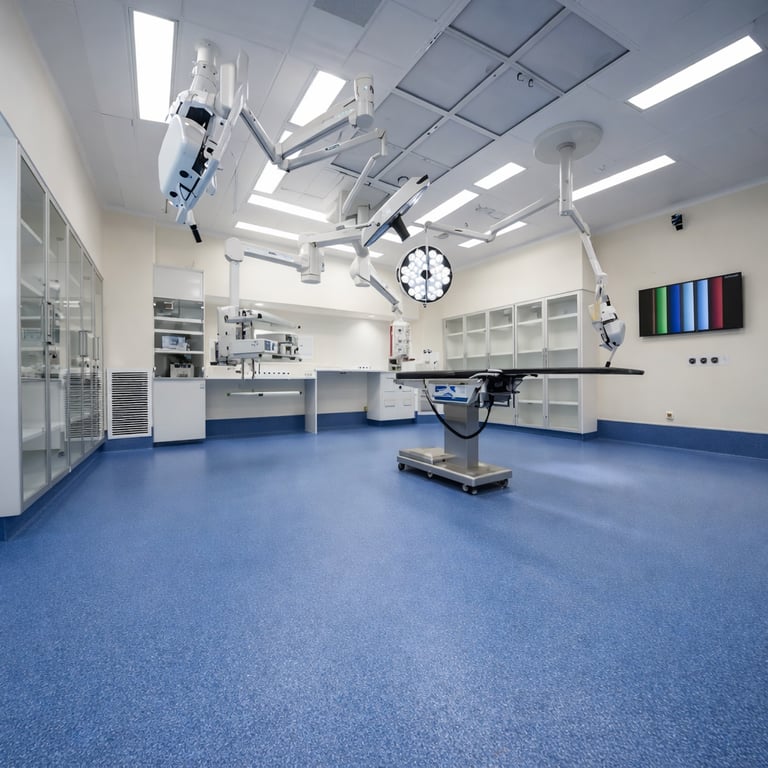

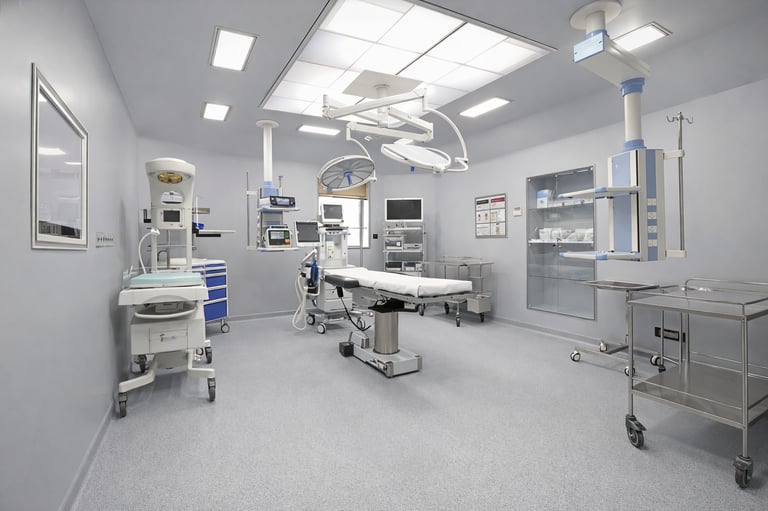

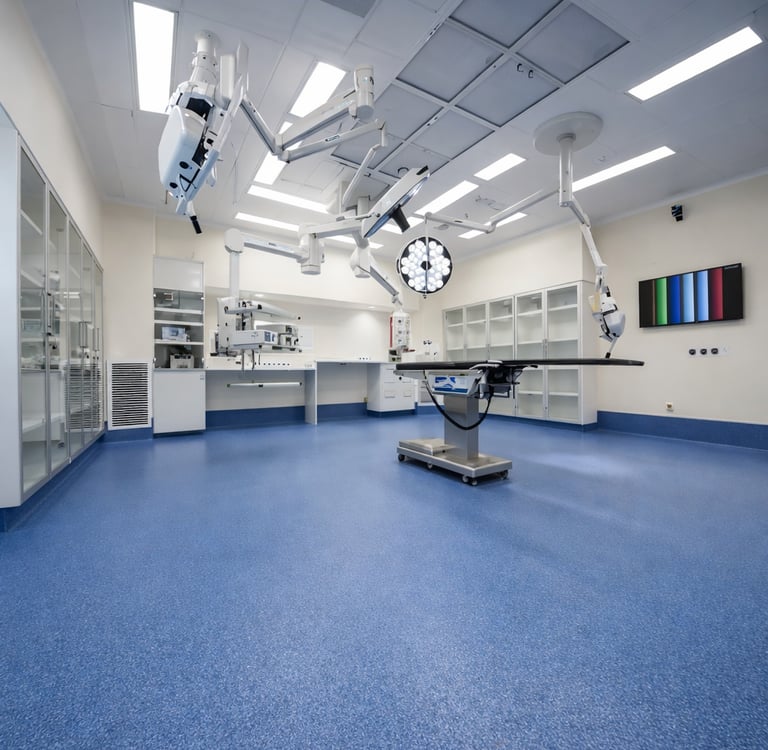

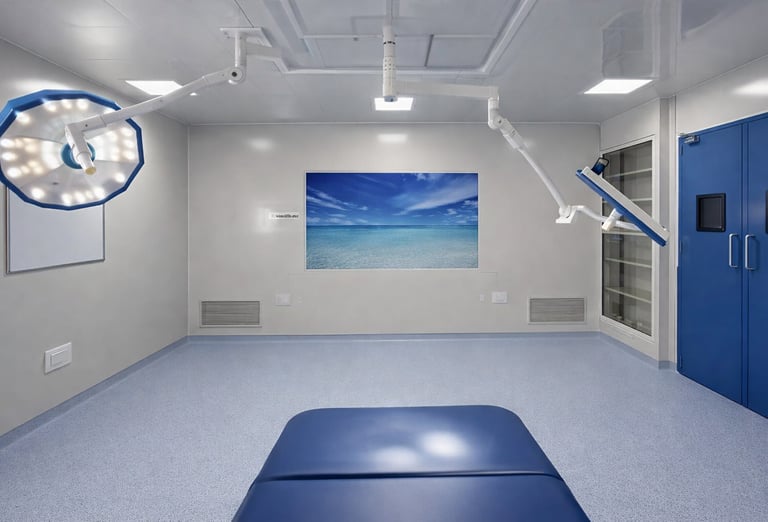

Modular Operation Theatres (MOT)

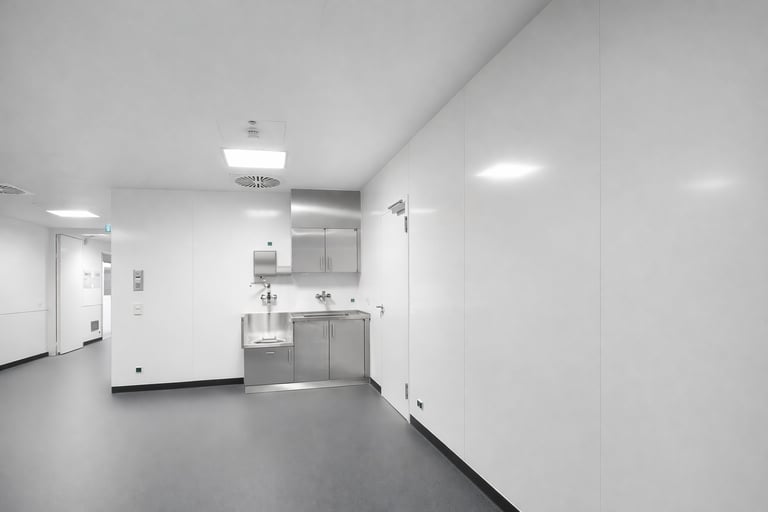

Wall & Ceiling Panels: GI powder-coated / SS304 / HPL Floor: Conductive / Homogeneous vinyl flooring Lighting: Peripheral & dome OT lights Integrated OT pendants and booms Plenum with HEPA and diffuser X-ray view panel, surgeon control panel

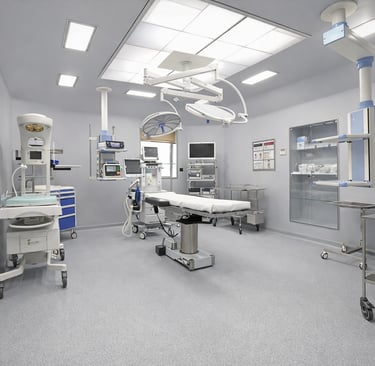

Turnkey-OT-/ICU-/NICU-Projects

Design → Supply → Installation → Validation MGPS pipelines Flooring, wall panels, medical equipment setup Electrical, AC, AHU, HEPA testing

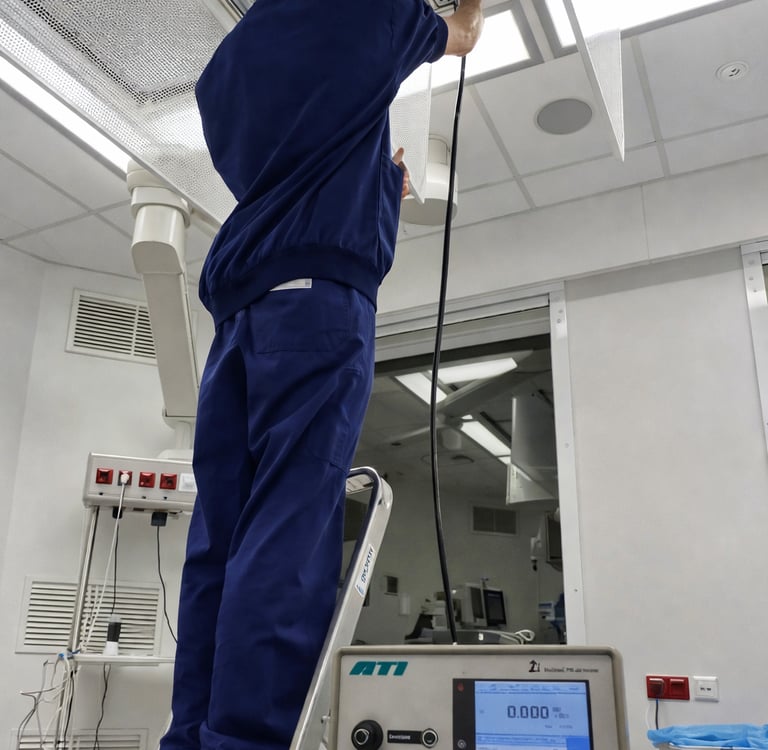

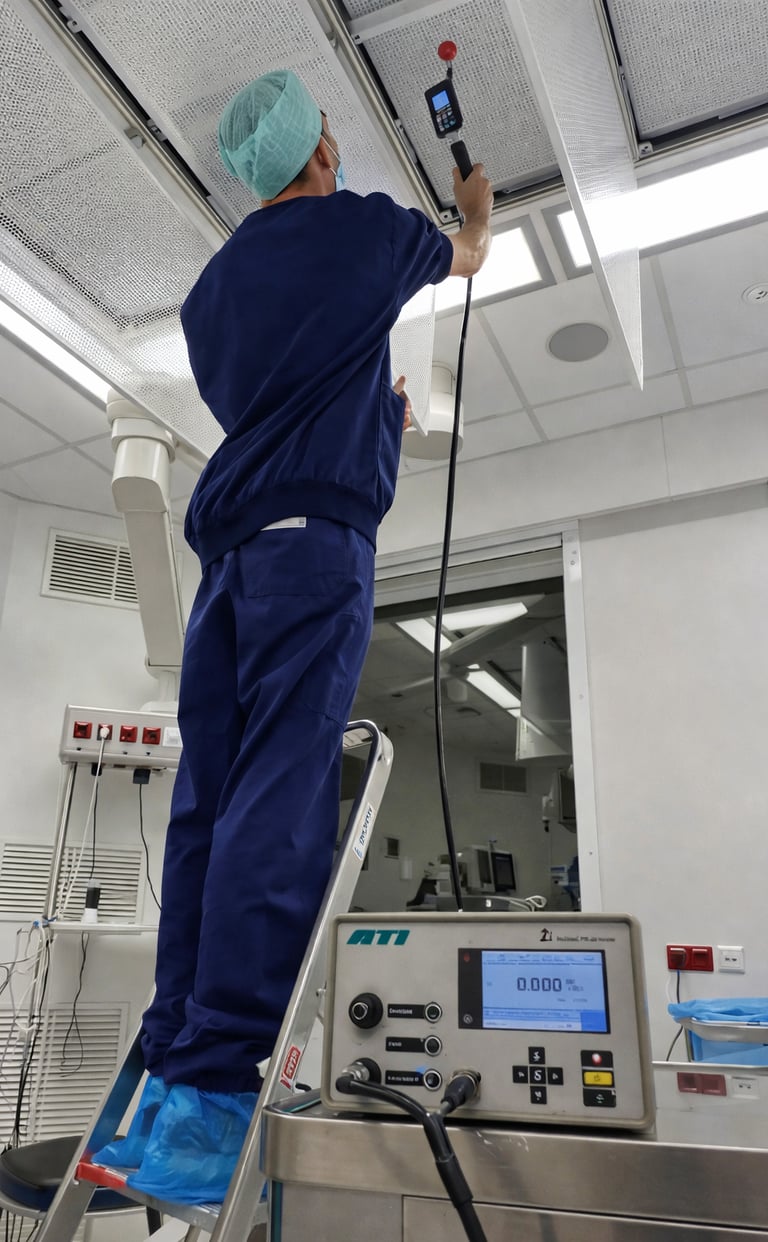

Operation Theatre Validation

NABH & ISO standard testing Air velocity & ACPH HEPA integrity test Differential pressure measurement Noise, lux, and RH testing

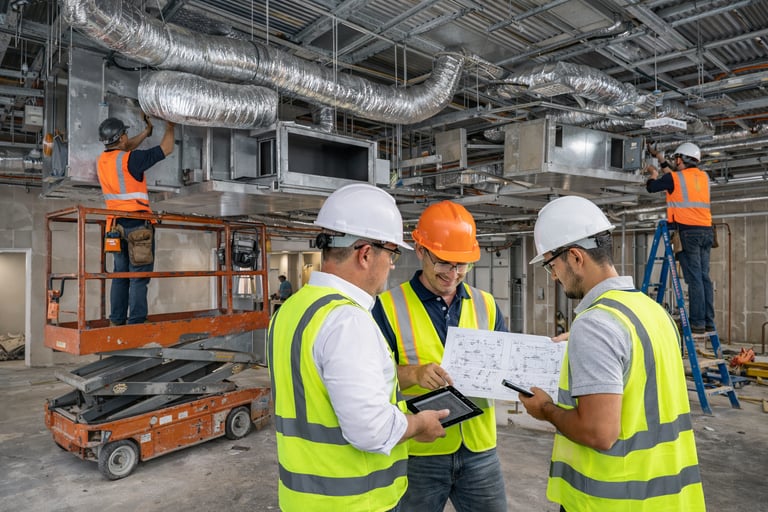

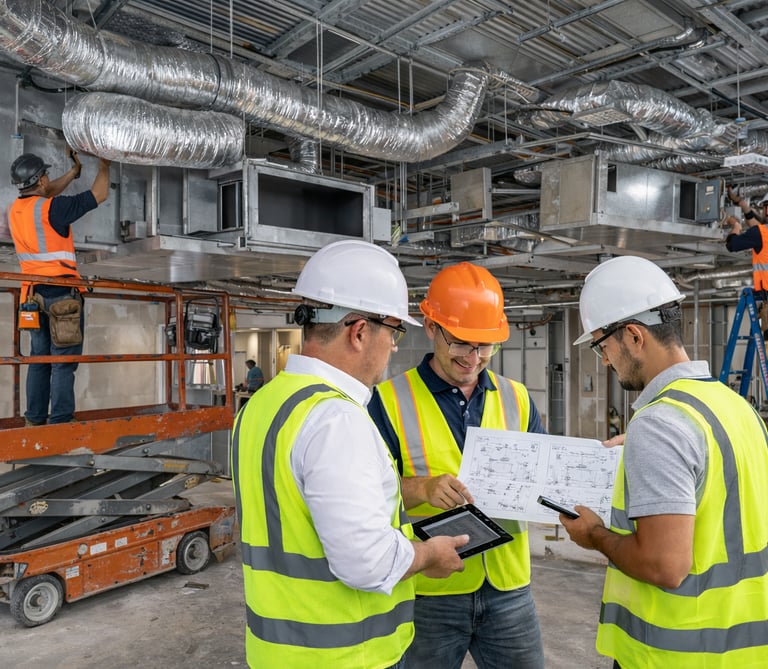

Commercial & Industrial Works

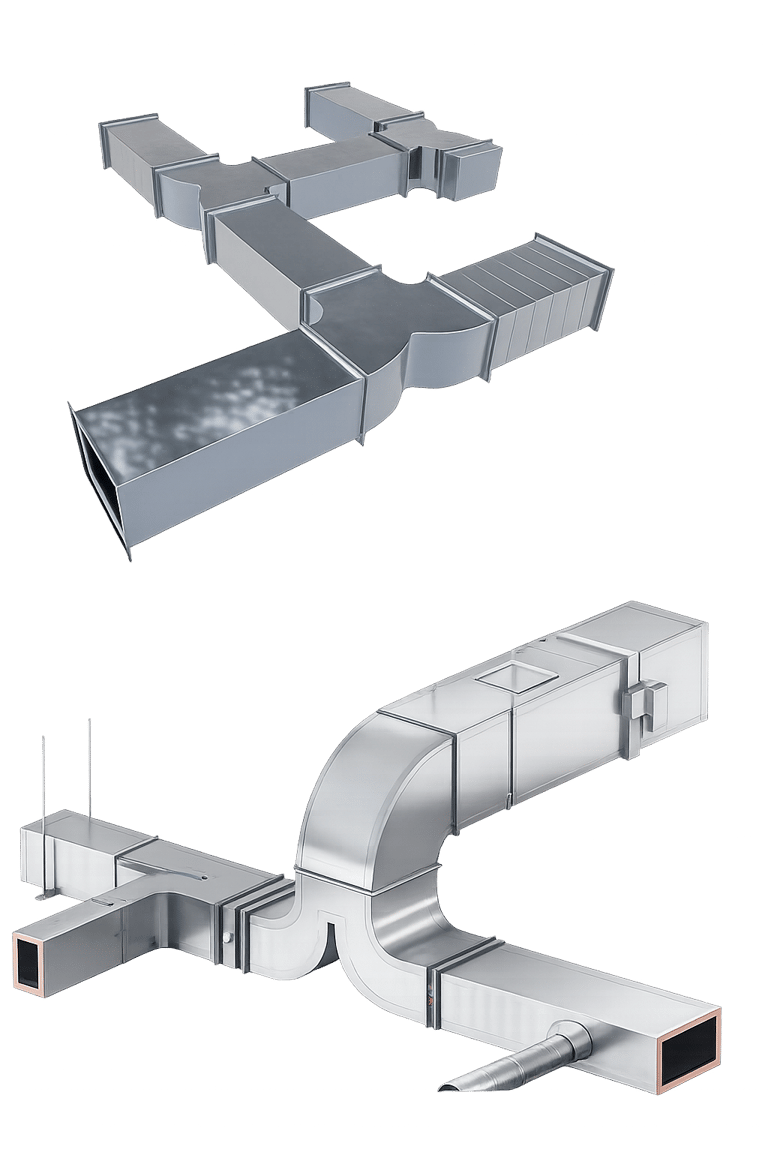

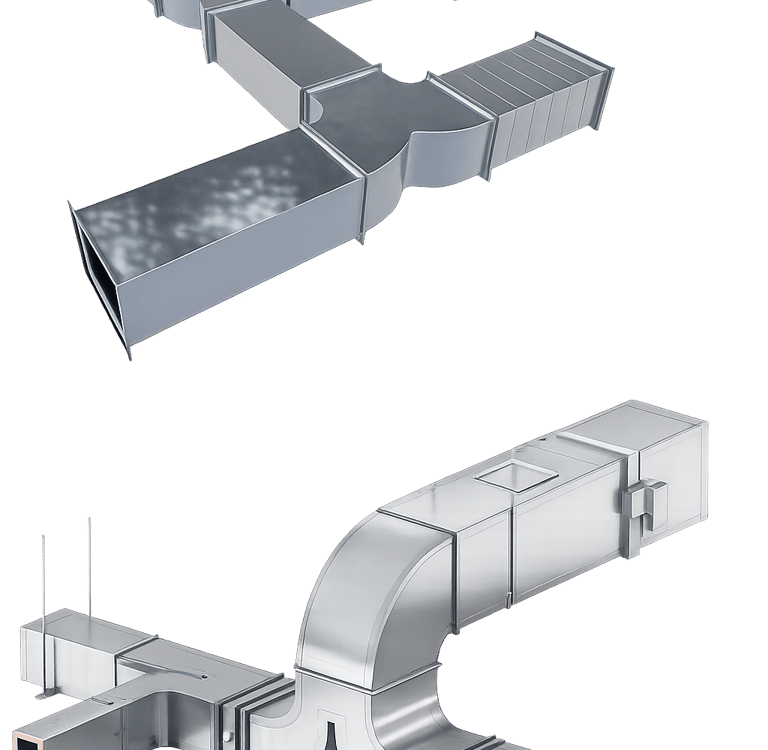

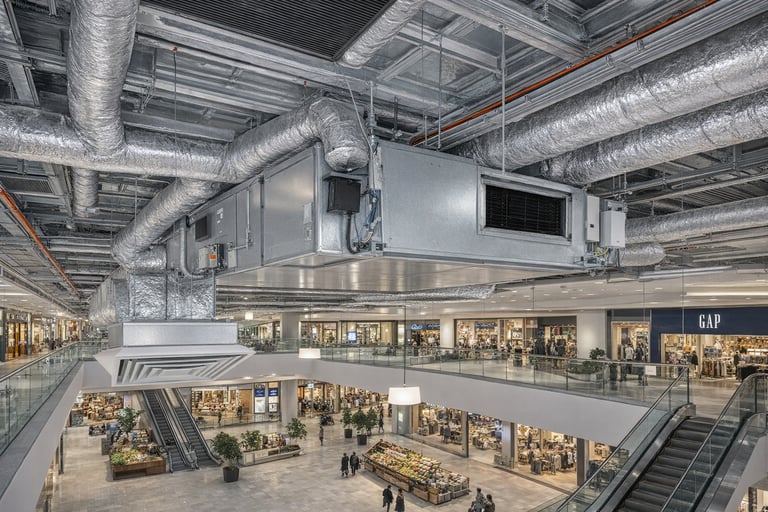

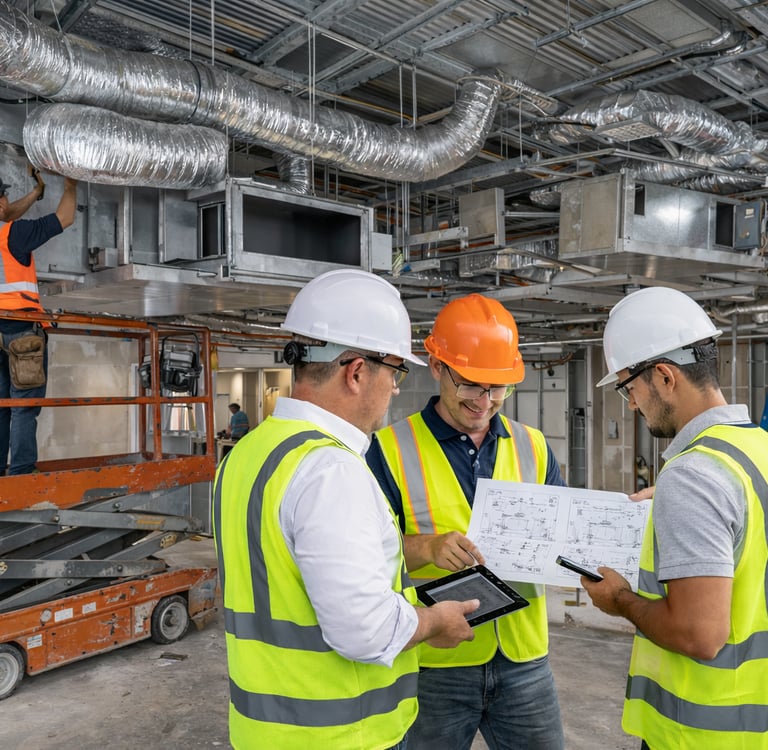

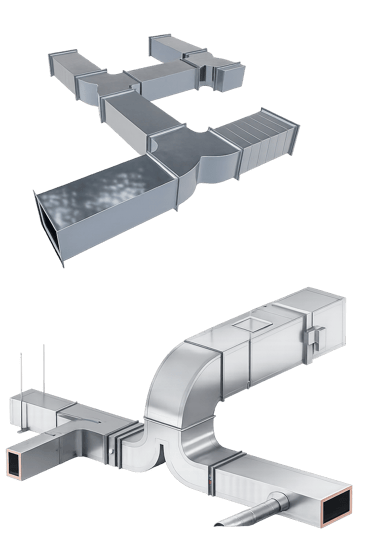

Ducting Works

Materials: GI, PI, aluminum, SS Types: Supply/return/exhaust ducts Fabrication standards: SMACNA / IS Accessories: VCD, fire dampers, grills, diffusers
